The first IBOS car system with HD image quality. As with the analogue IBOS CamBoss, you can benefit from the modularity of the system and combine different types of camera heads, crawlers, cable drums and control units, but with more advanced software and mechanical solutions offering higher performance. Especially for servicing, the absence of optical fibres in the image transmission is an advantage.

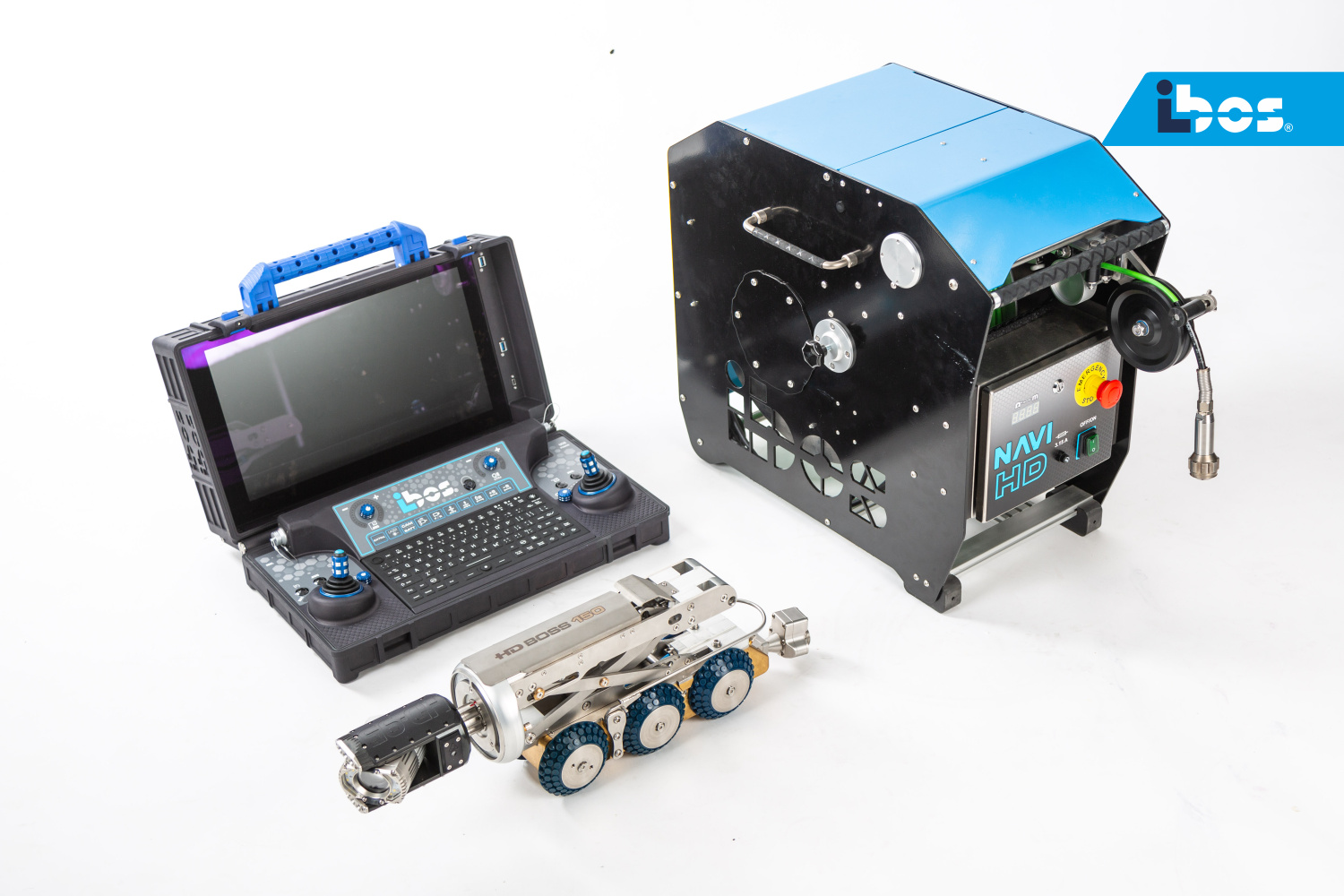

HD CAMBOSS 150

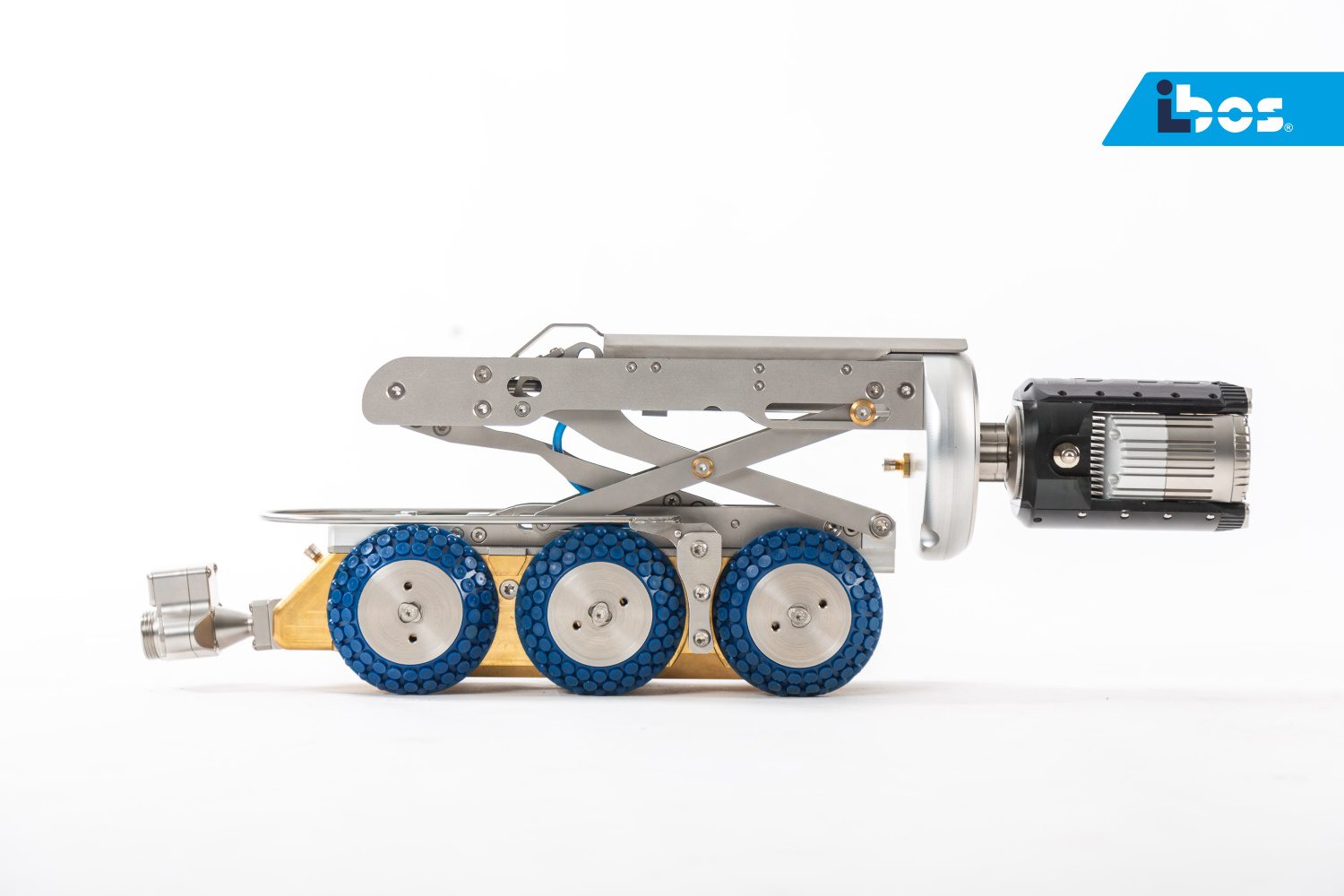

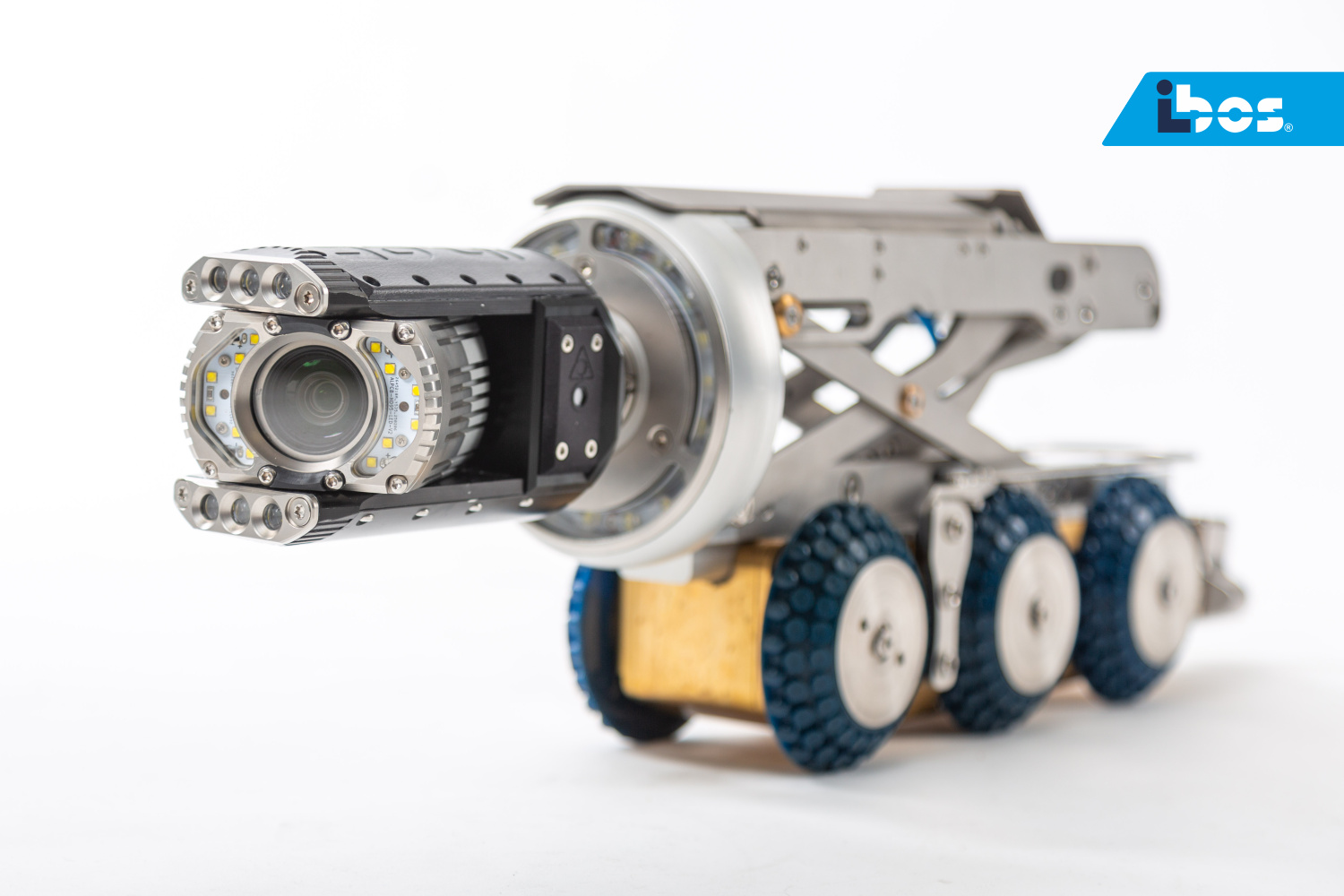

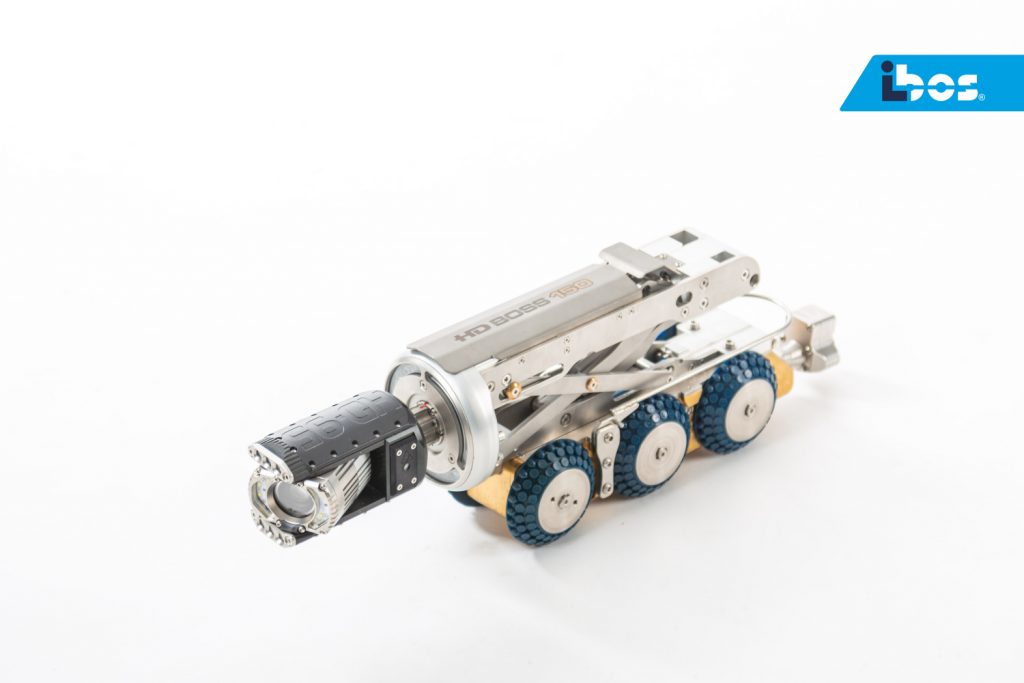

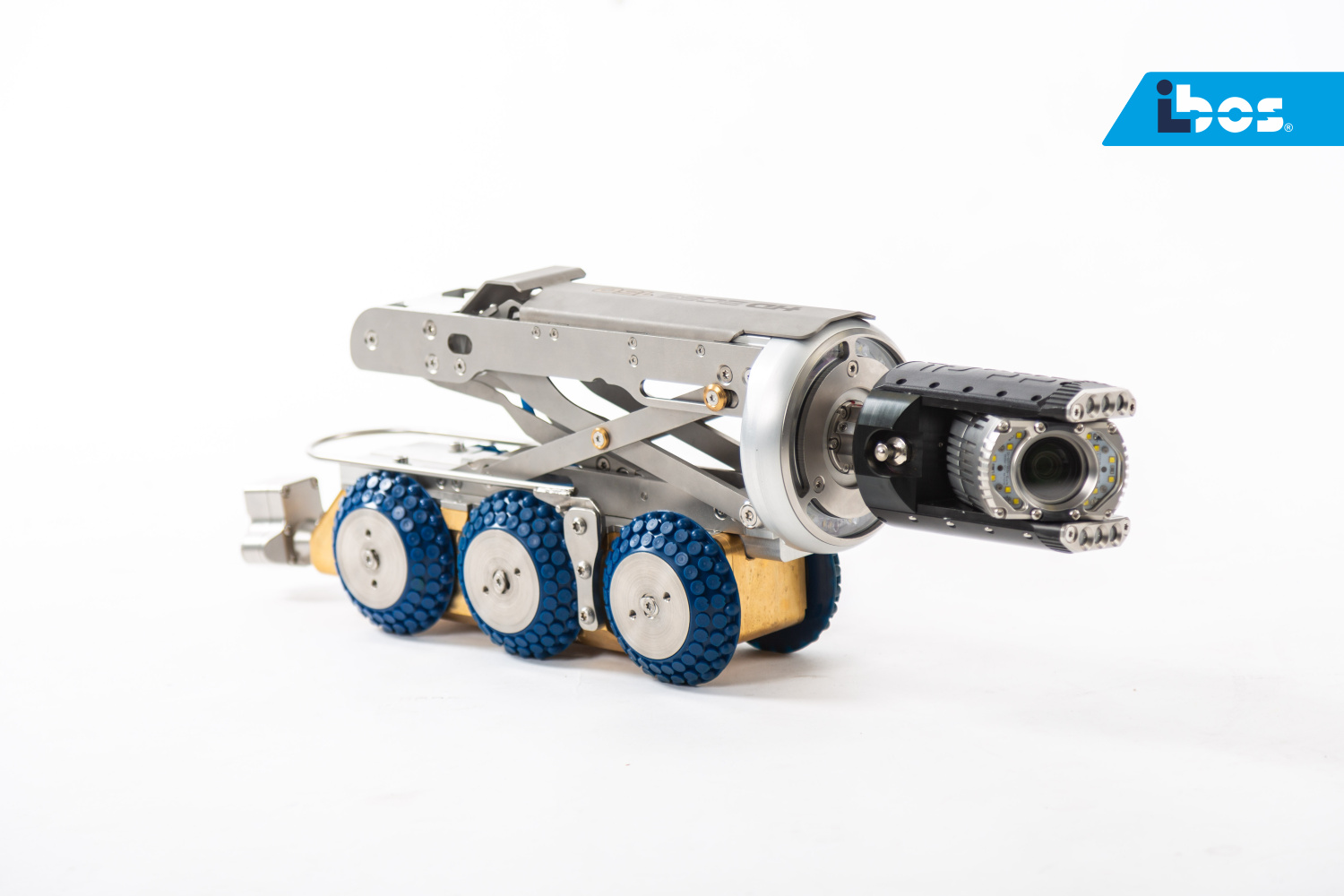

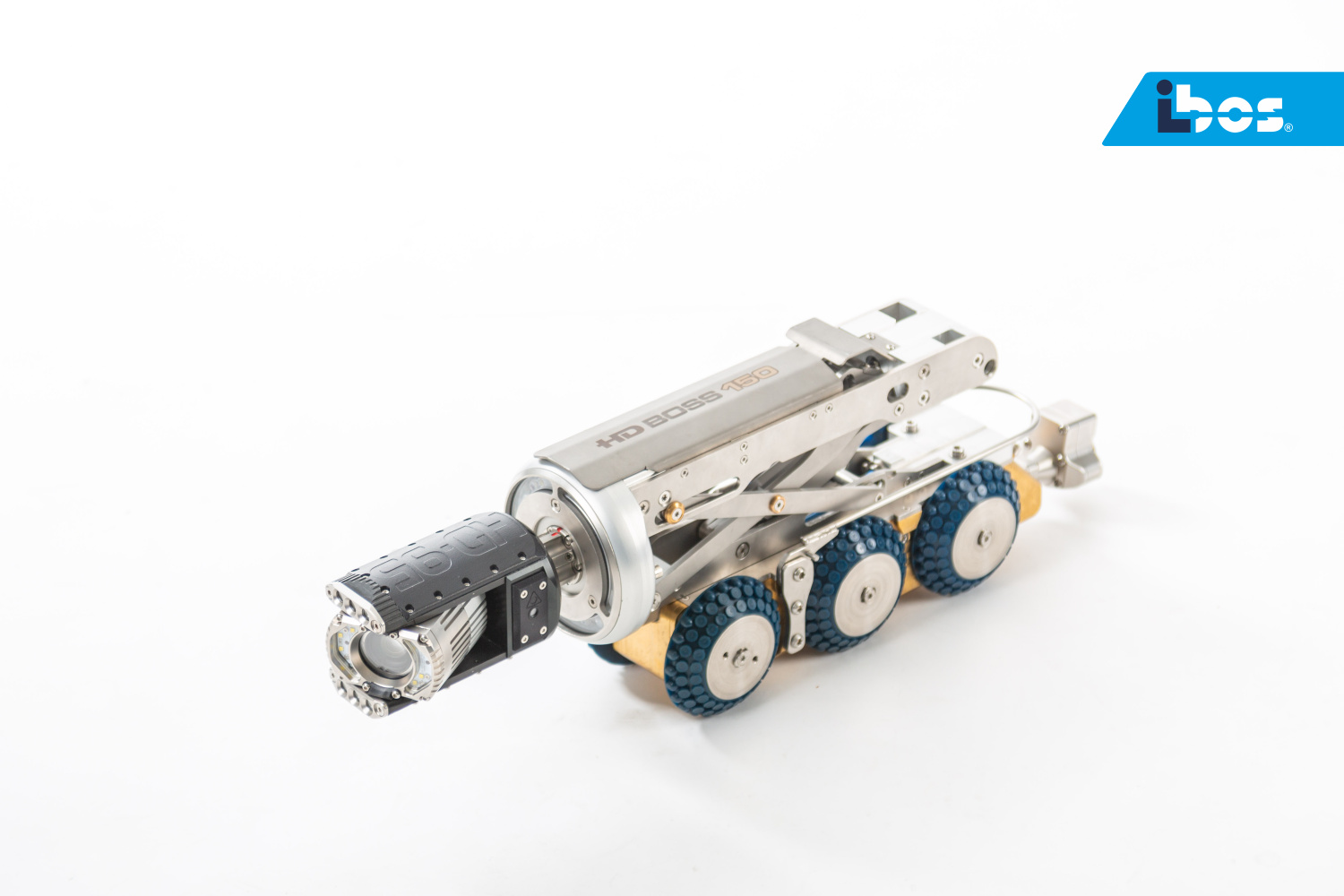

Chassis: 6×6 drive, two 100W motors, automatic rollover compensation when driving, 1 set of basic wheels, HD rear view camera with illumination, pressure resistant up to 1 bar, for HD 95 camera
Options: electric pantograph, additional lights, wheels for various DN, additional chassis (DN 400 – DN 1200), upper guide for egg-shaped pipe profiles
Camera heads:
• HD60 – resolution 1920×1080, light sensitivity 0.01 lux/ F2.5, swivel 2x 105° (with antenna 2x 60°), 8 x LED lights with a total power of 4.7 W, automatic/manual remote focusing, viewing angle 110°, 12x digital zoom

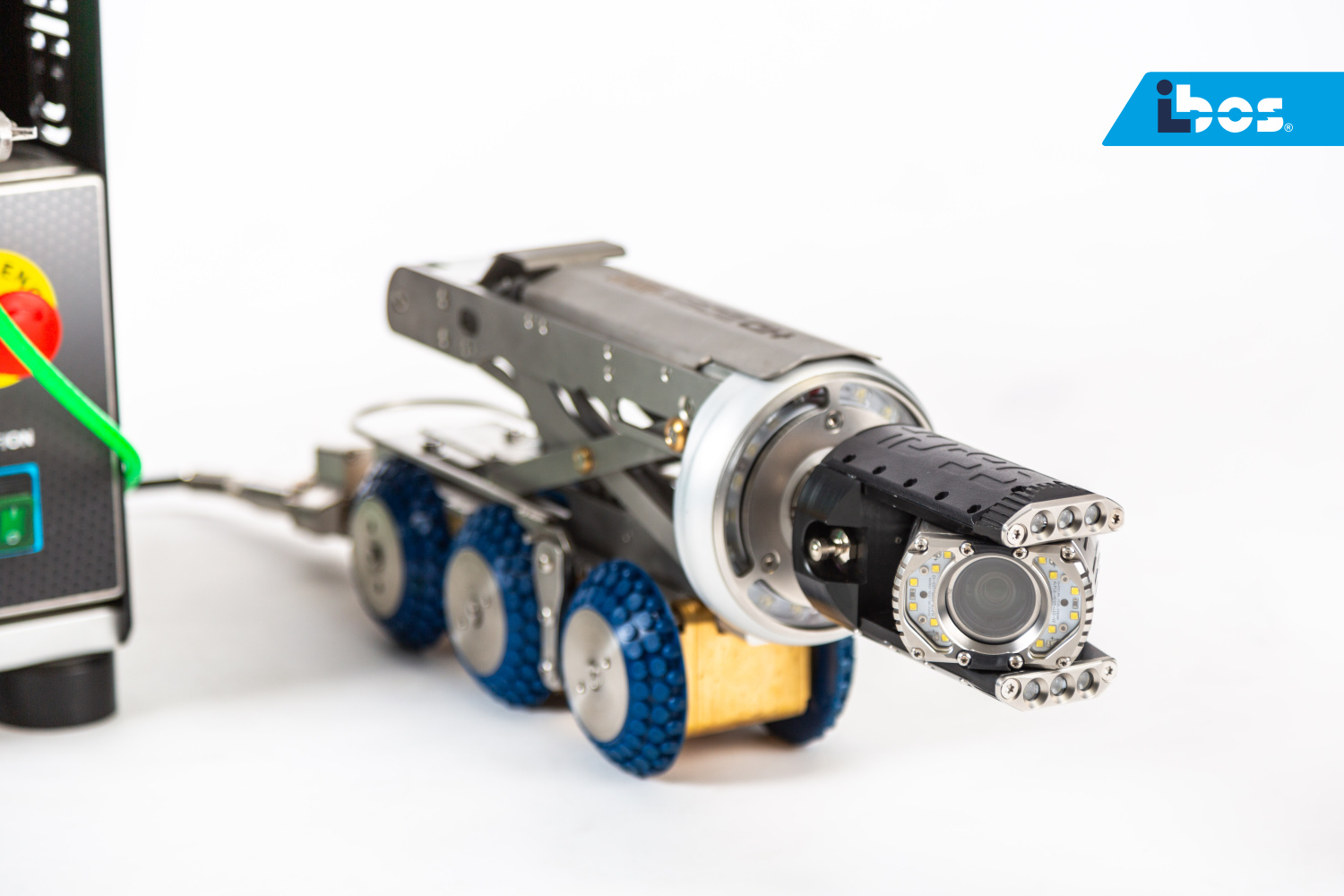

• HD95 – resolution 1920×1080, light sensitivity 0.15 lux/ F1.5, automatic/manual remote focus, viewing angle 110°, swivel 2 x 110° and rotation 360° (infinity), 12x super-bright LEDs – 5.5 W power on the tilting part of the head, 6x LEDs with reflectors on the fixed part, 6.6 W power. 10x optical + 12x digital zoom, 33 kHz probe, lasers
Control units:

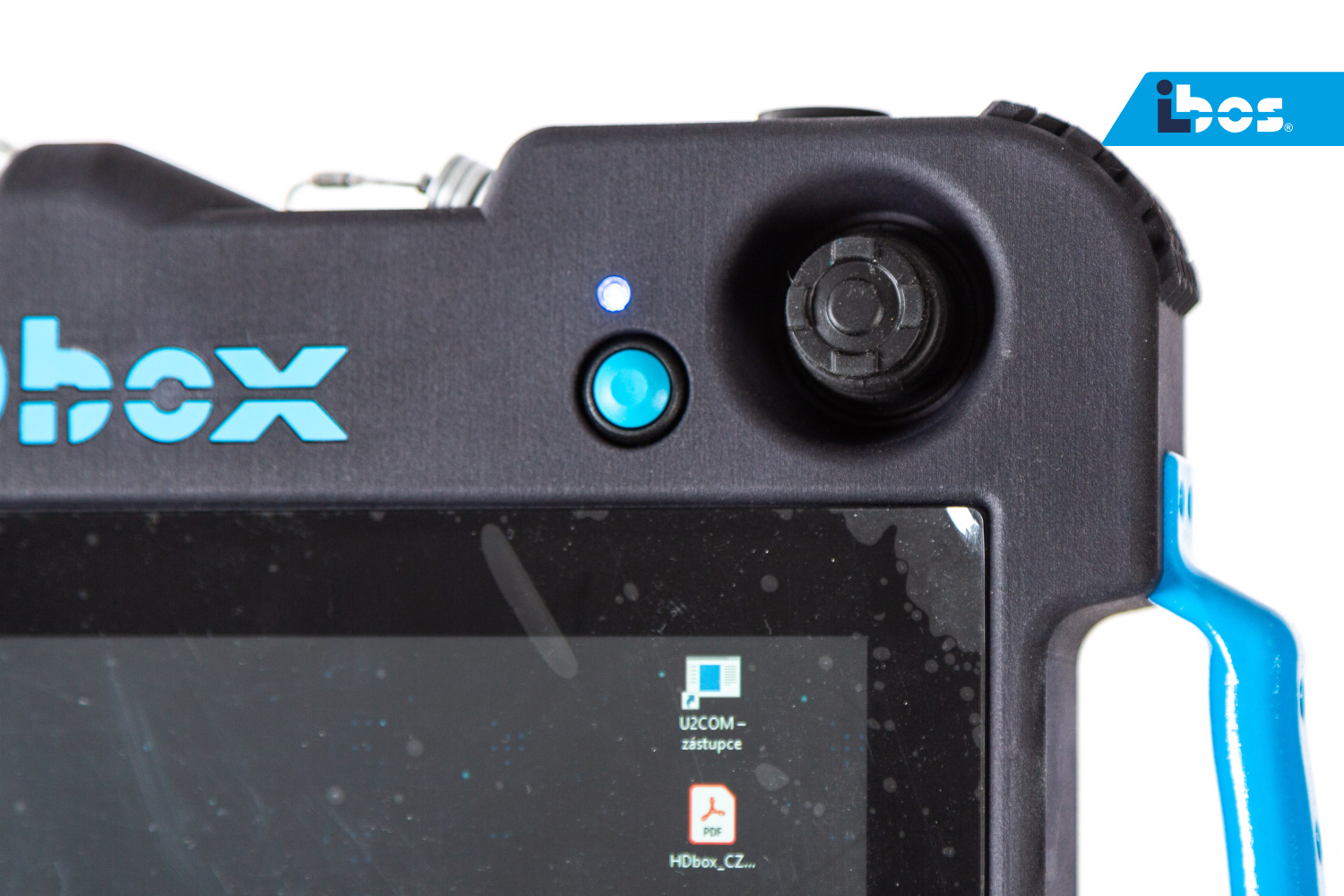

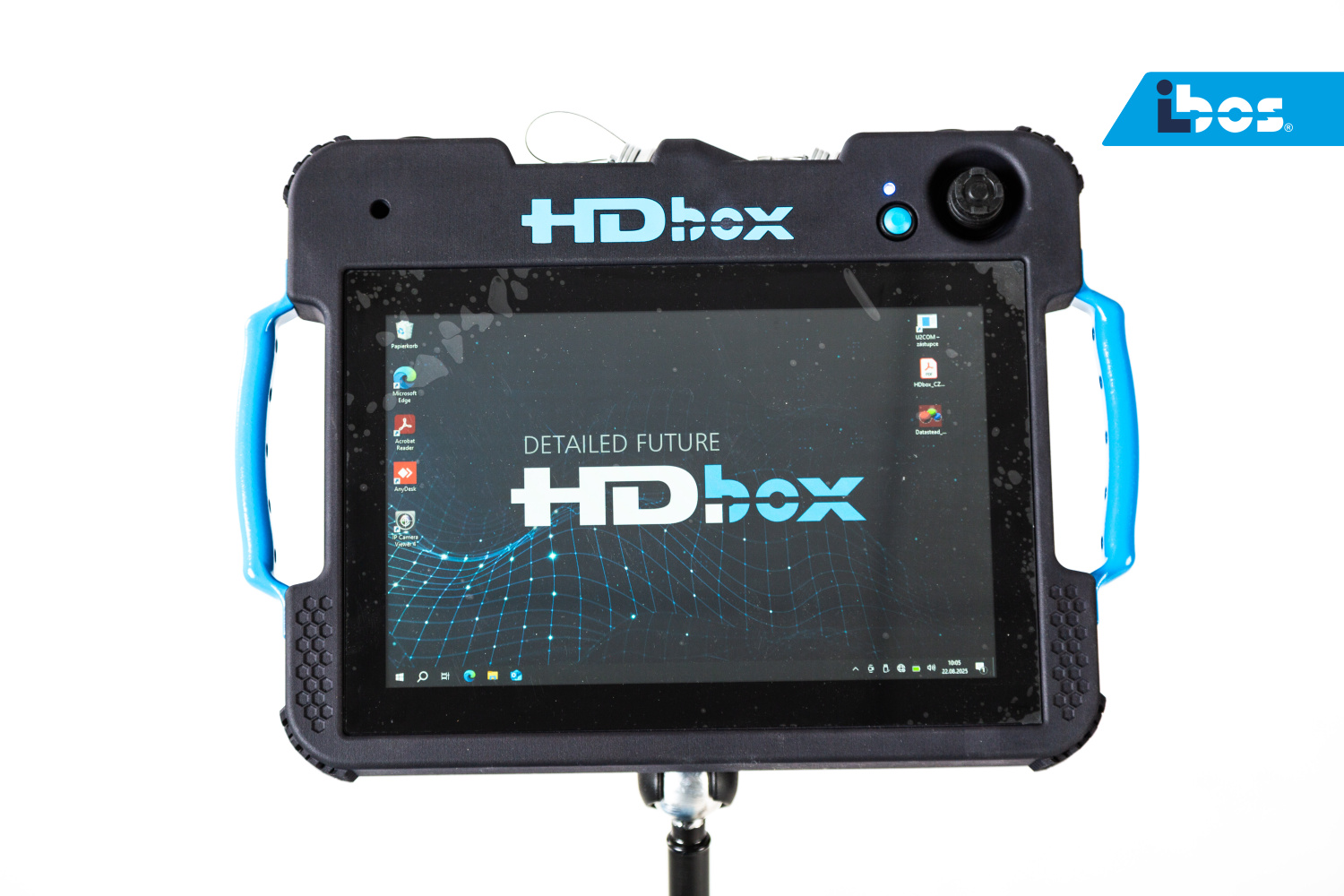

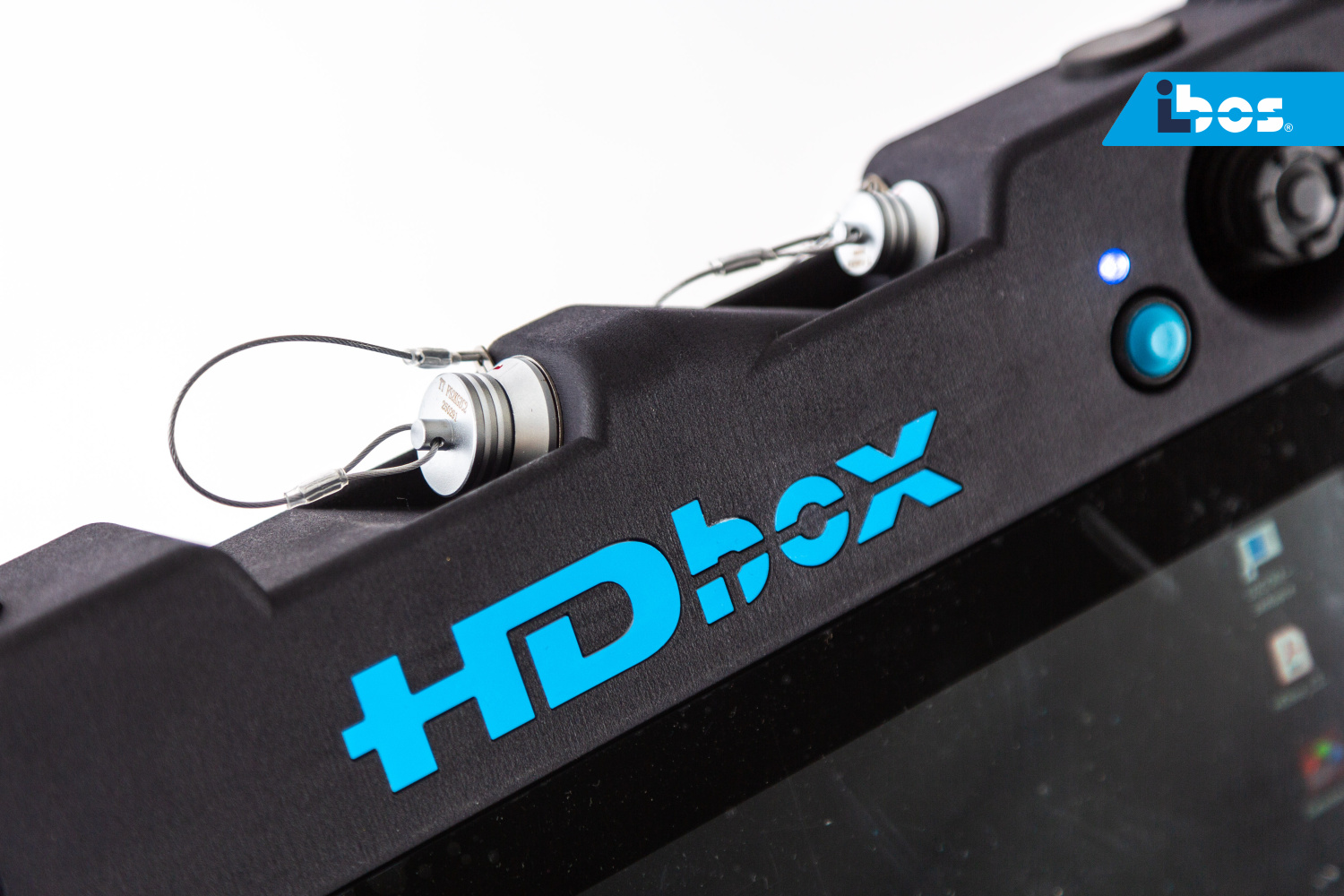

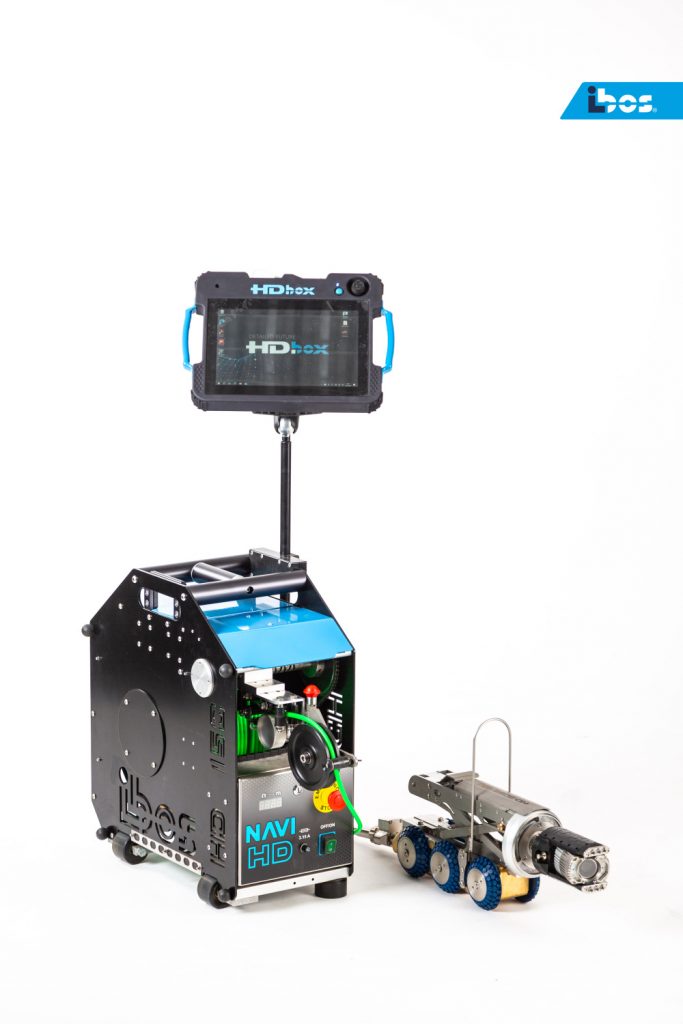

• HDBox PRO Battery-powered mobile control unit for pipe monitoring using HD46, HD60, and HD 95 cameras with the option of recording inspections using DigiCan software. Intel i5-6300U 2.4GHz CPU, 8GB DDR4 RAM, min. 250GB SSD hard drive (can be upgraded – optional), 12.1″ 1280×800 LCD, touchscreen, 1000cd brightness, Windows, WiFi, 1x USB 3.0, 1x USB 2.0.

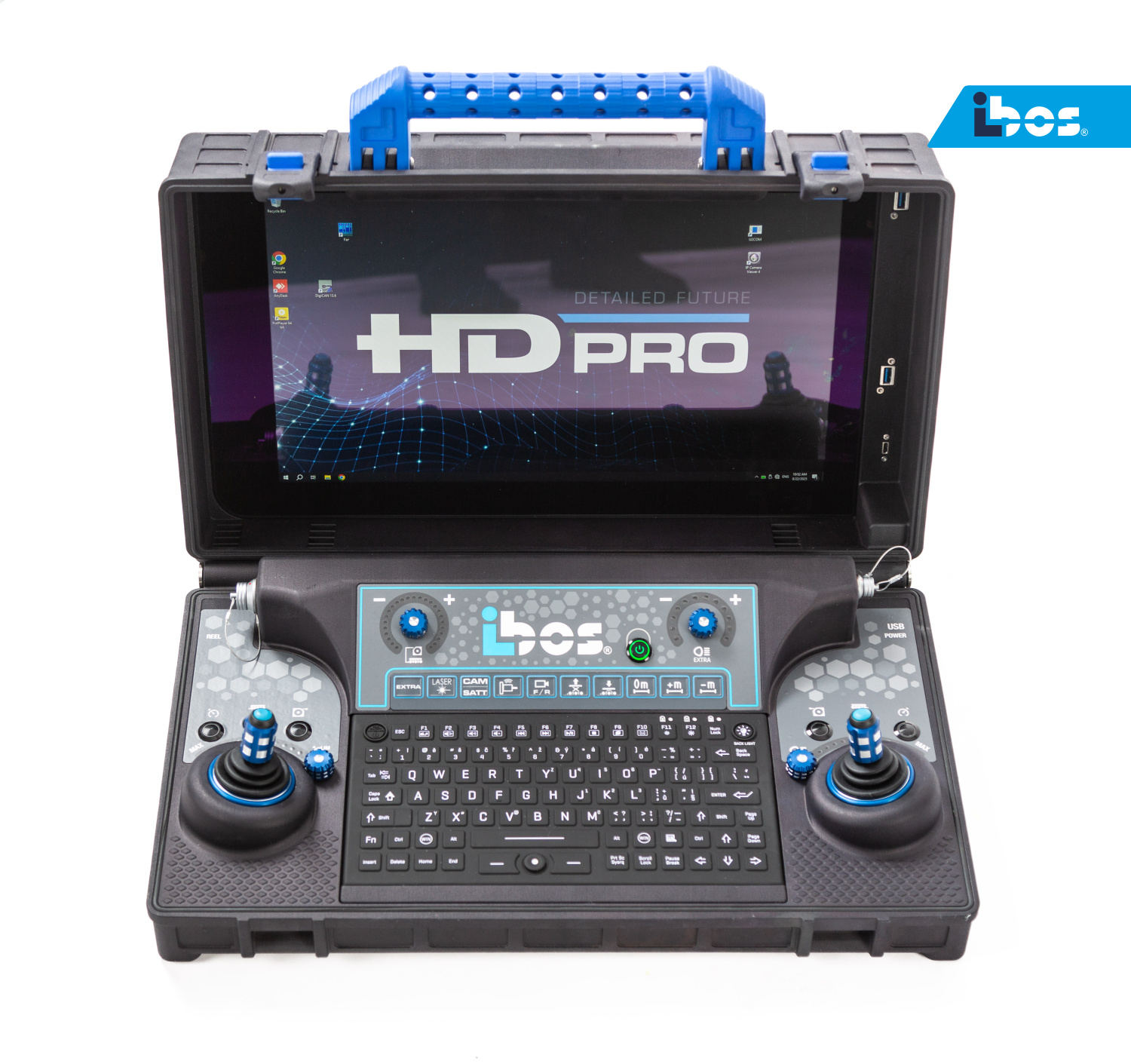

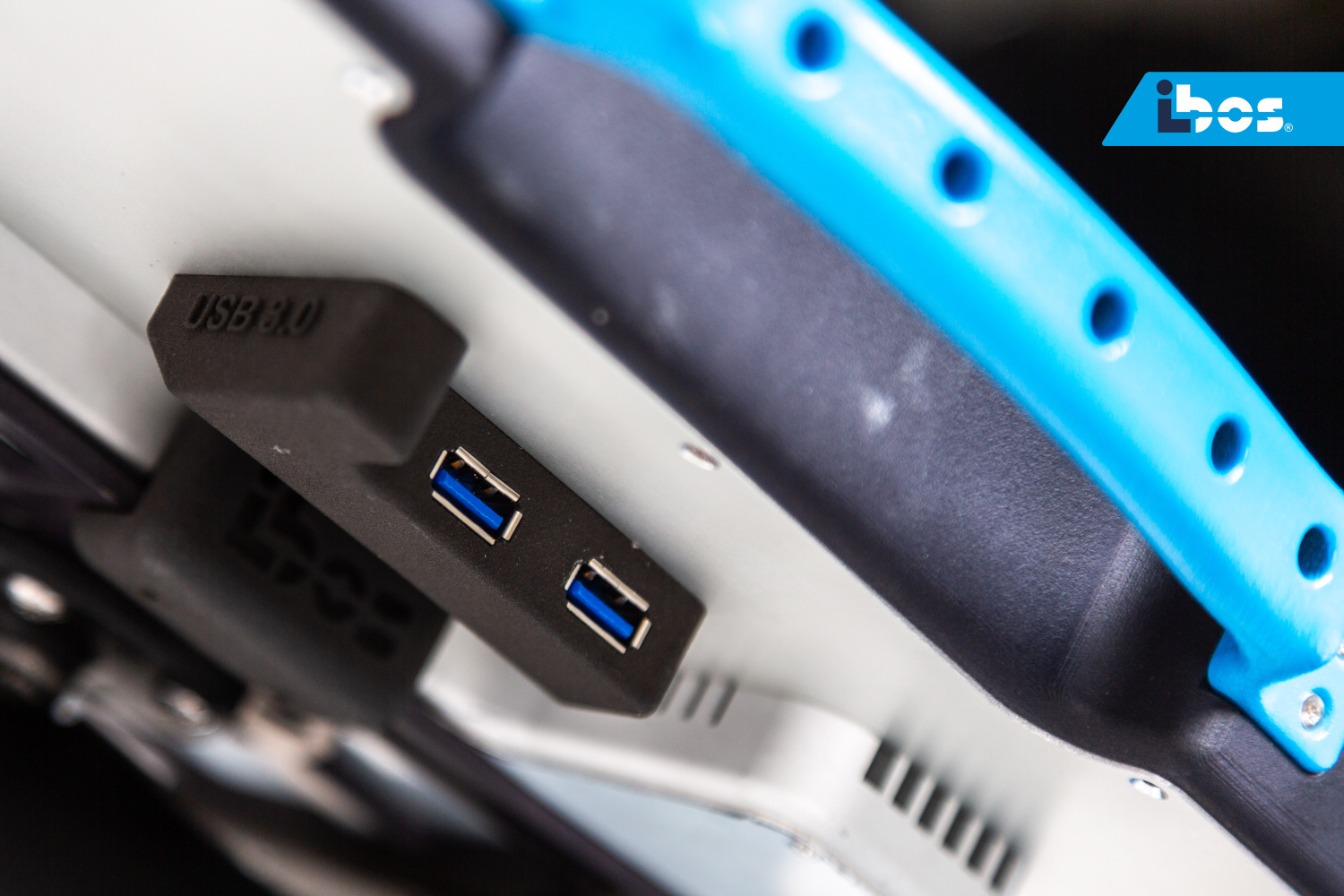

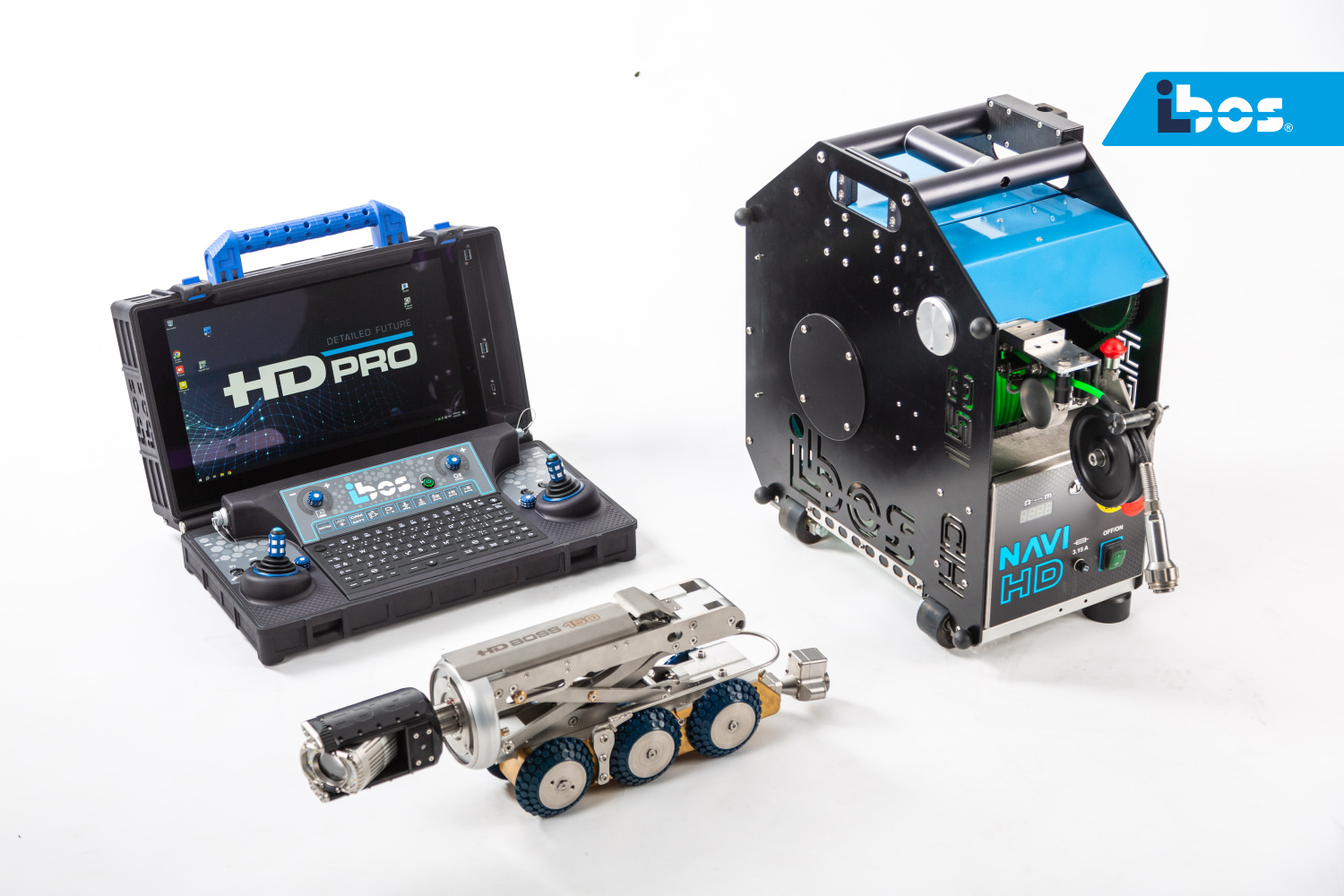

• HD PRO Control Unit battery-powered mobile control unit for monitoring pipes using HD46, HD60, and HD95 cameras with the option of recording inspections using DigiCan software. Intel i5-6300U 2.4GHz CPU, 8GB DDR4 RAM, min. 250GB SSD hard drive (can be upgraded – optional), 21″ 1920×1080 LCD, backlit keyboard, waterproof design, WiFi, 2x USB 3.0, 1x USB 2.0, 1 x USB “C”, battery for min. 2 hours of operation

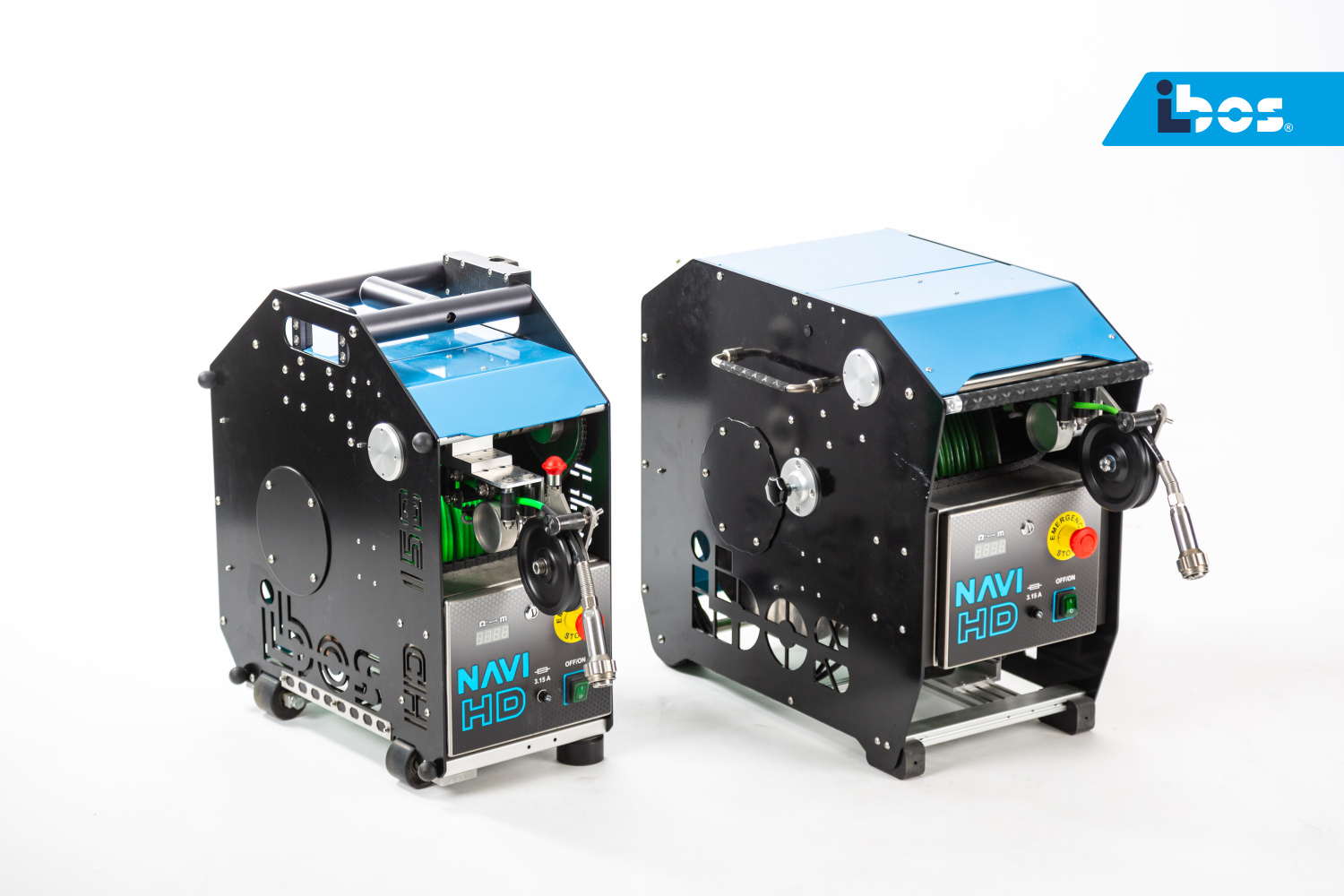

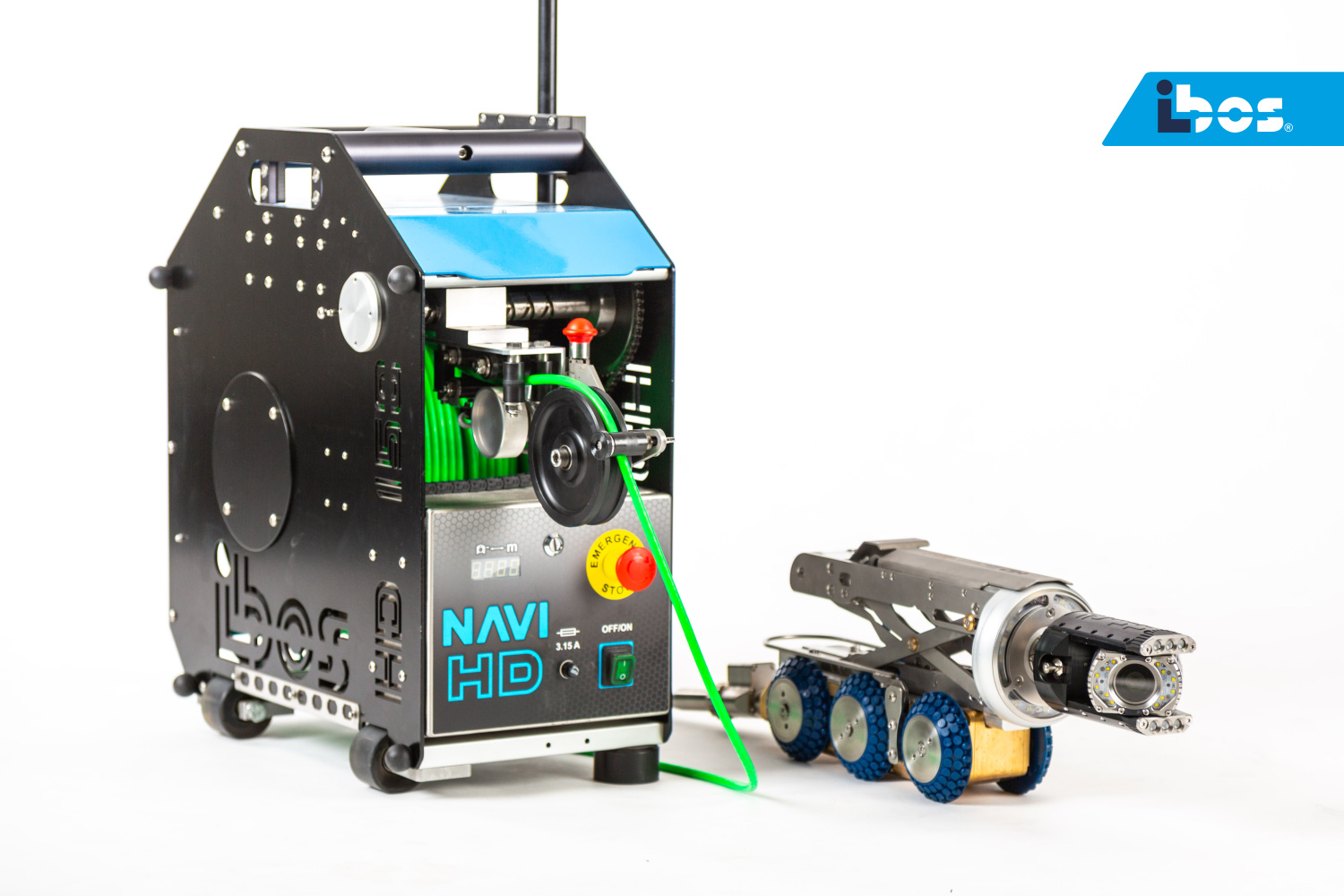

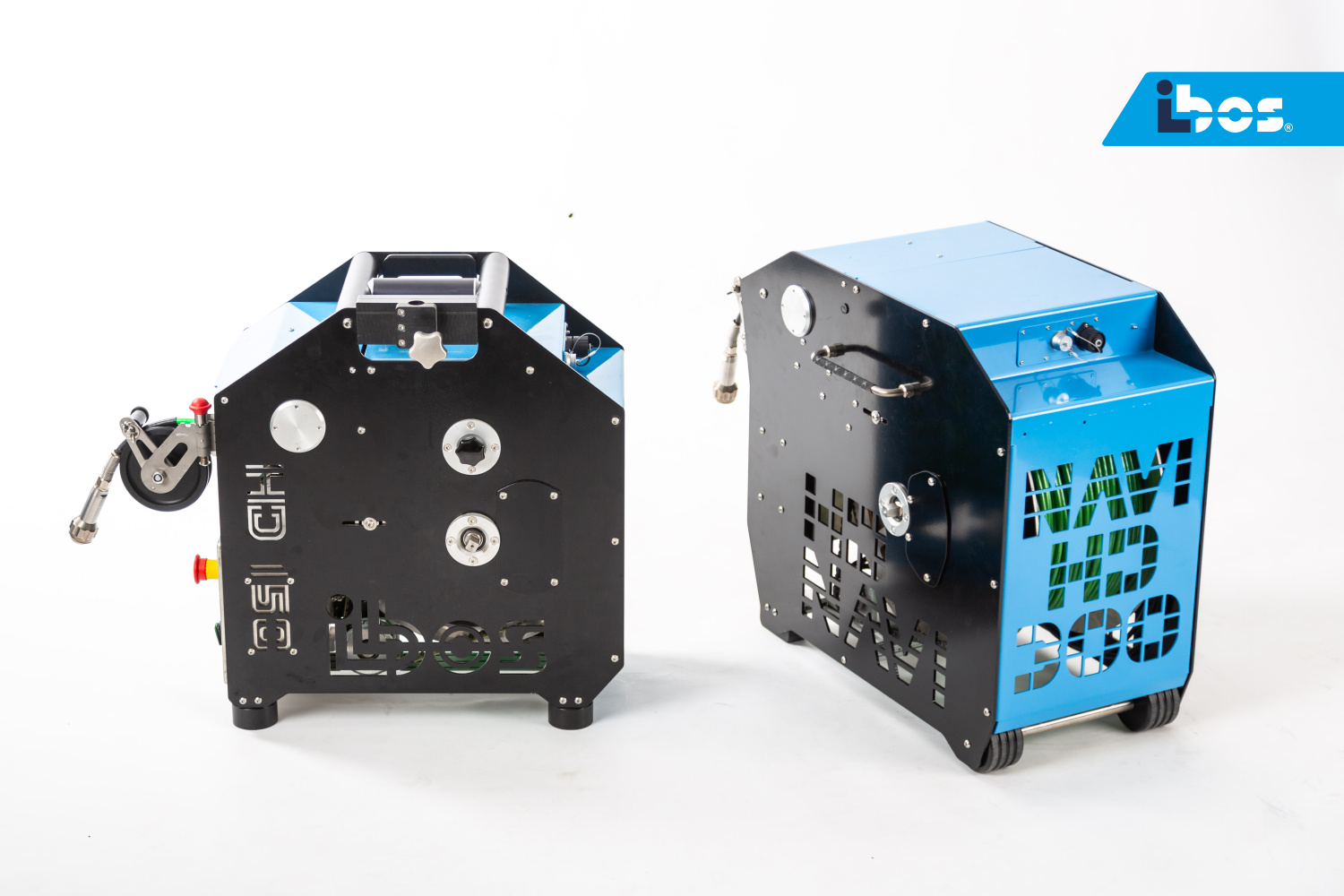

Two winches with a capacity of 150 and 300 meters will be available:

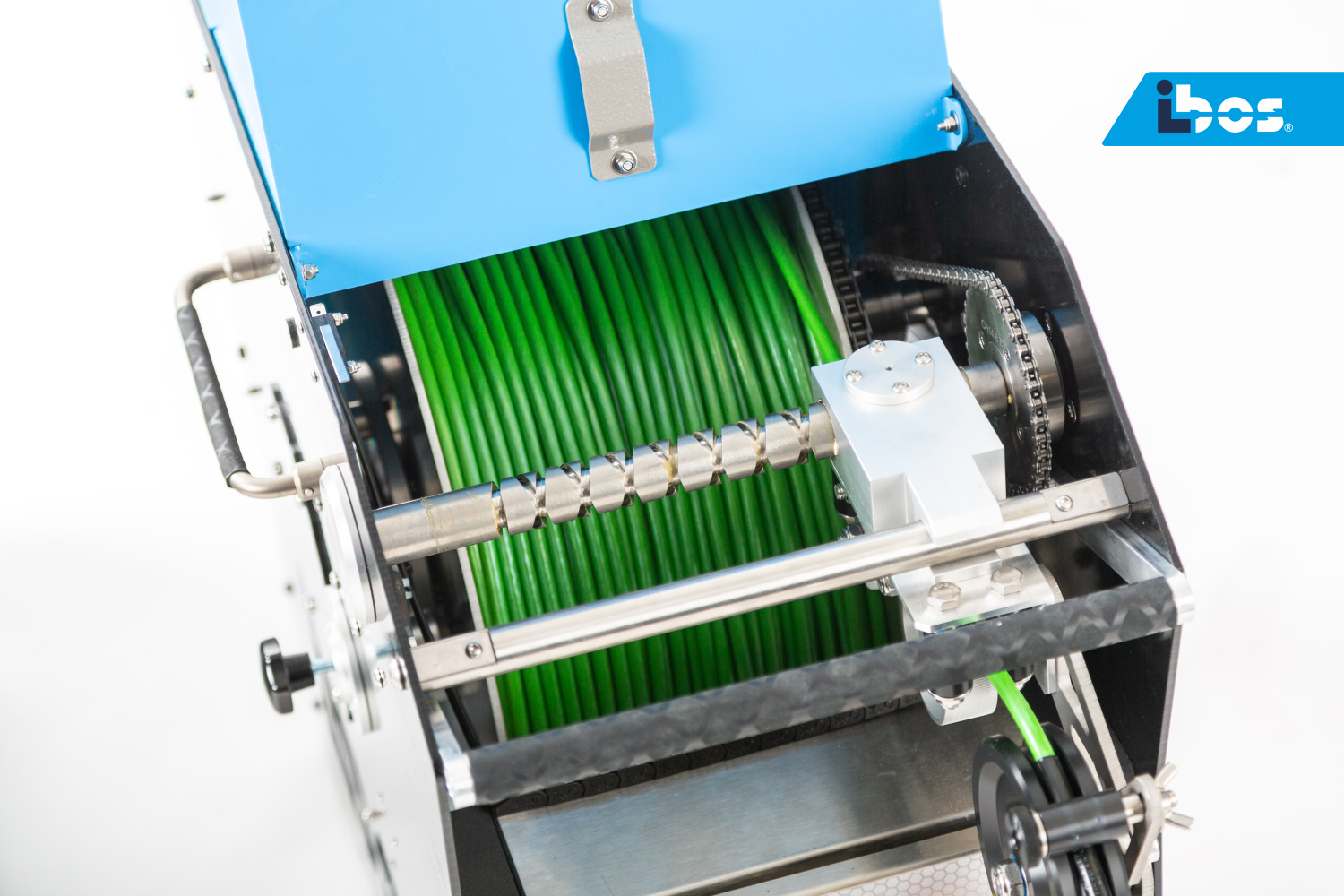

Automatic motorized reel, guide pulley to reduce cable strain, sensor
to measure unwound cable, splash-proof, max. capacity 150/300 m of cable.
OPTION: wireless “radiocontrol” allowing control of the trolley and camera
Software: Digican
